Product
Hardware,
considered.
Two product lines of our own by 1030 System — the Smart Lock and the Smart Control Panel. Both can be purchased and installed as standalone upgrades, or as part of a full property project.
Everything else a project needs — switches, sensors, cameras, network and control equipment — is specified and sourced per project, then integrated by our team. See Solutions.
Control · 01 · 1030system SCP

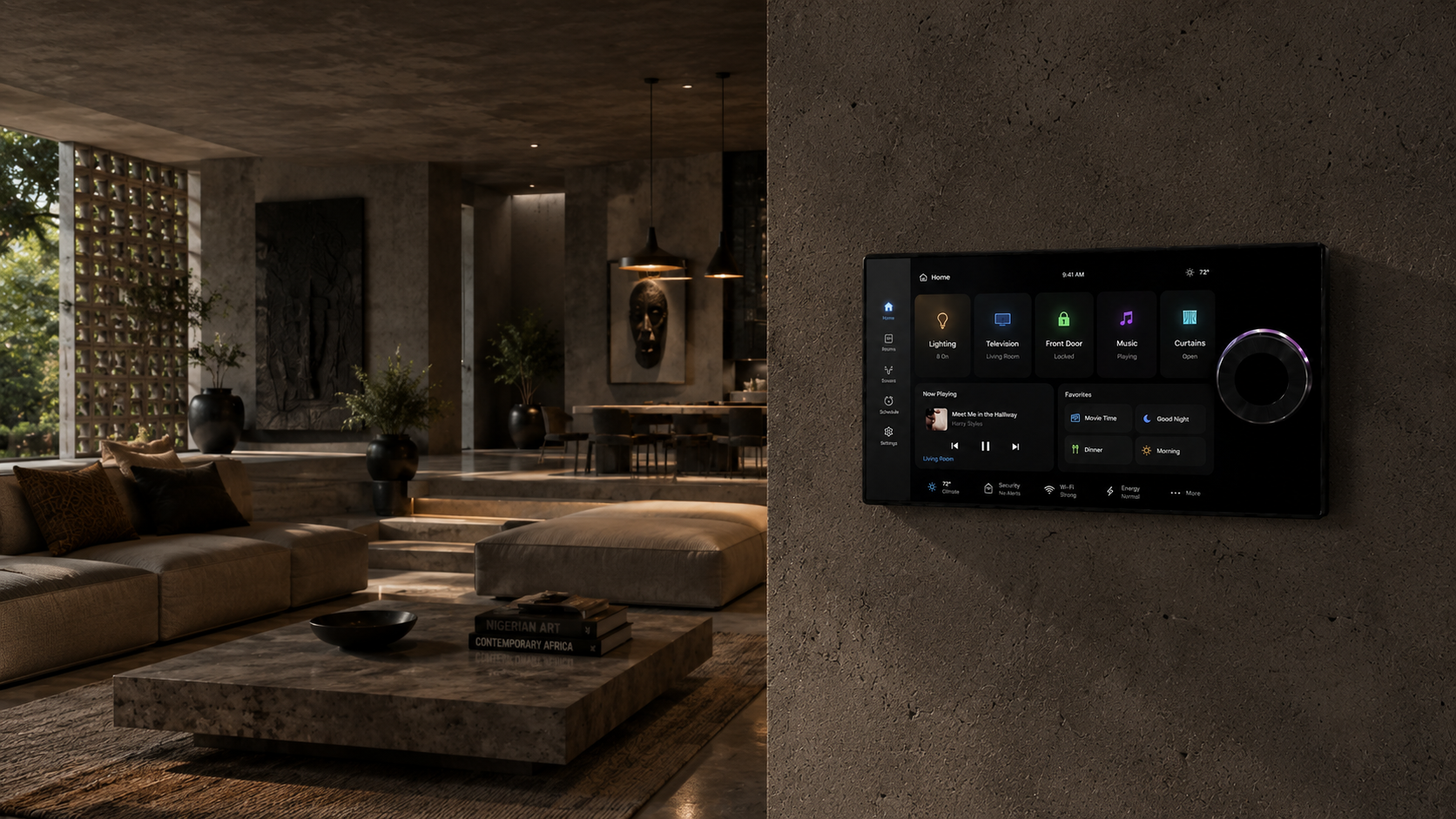

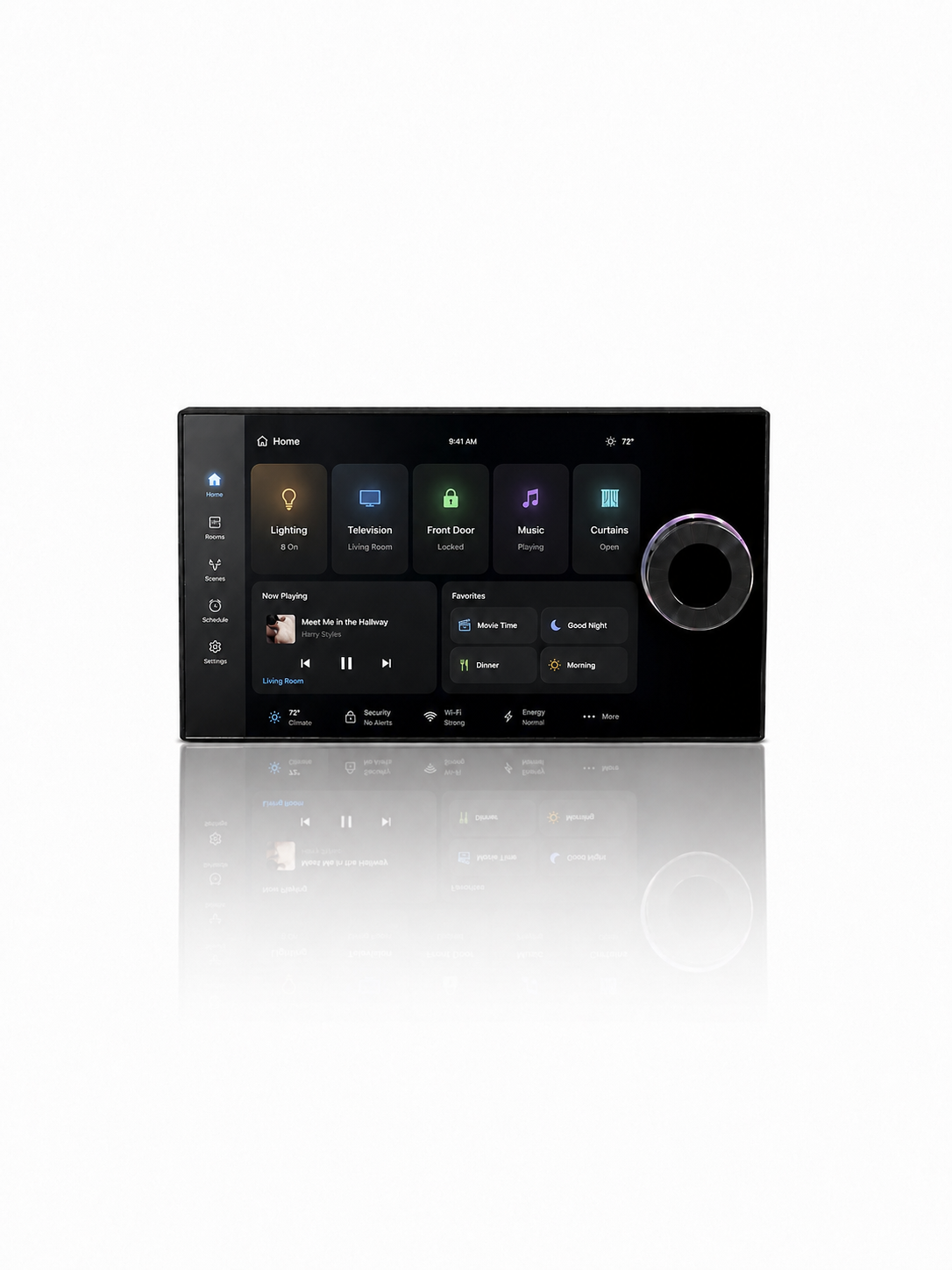

The 'Halo' Smart Control Panel
The 1030 System 'Halo' Smart Control Panel is designed to serve as the central intelligence hub of the modern home, bringing together lighting, entertainment, curtain and blind control, scheduling, climate settings, and smart automations into one seamless architectural interface.
Halo creates a connected ecosystem where multiple devices and automation systems operate through one refined control centre.
Engineered as the connectivity hub of the home — Wi-Fi, Bluetooth, Ethernet and RS485 converge in one device, so every other smart system in the house runs faster and more reliably.
What installation includes
Halo installation goes beyond the device. Our team sets up your Wi-Fi and network connectivity, then connects and configures your lighting circuits, audio system, televisions, streaming devices and any other compatible smart systems in your home — all unified into the panel's interface.
Colour
Black
Warranty
2 years
Price
450,000 Naira
Enquire
Product highlights
- Aesthetic user interface
- Optimal home connectivity
- Lighting control & automation
- Warranty protection
- Voice assistant integration
- Security system integration
- Climate & AC management
- Scheduling & automation modes
- Genuine product
- Automatic curtain control
Specifications
- Display
- 8-inch HD IPS LCD, 1280×800
- System
- Android 10.0
- CPU
- R818 Cortex-A53 Quad-Core 1.5GHz
- RAM / ROM
- 1GB / 8GB
- TF Card
- Up to 32GB
- Power supply
- 220V, 50Hz / AC
- Background music
- HomeOS 6.0
- Speaker output
- 1.0W × 2
- Impedance
- 8Ω
- Bluetooth speakers
- 4 pcs (1 × S530-B, 3 × S530; max 1-to-3)
- Ethernet
- 10/100M
- Non-KNX interfaces
- RS485, L, N, 2-channel relays (L1, L2)
- Microphone array
- Dual-mic voice control
- Colour
- Black
- Dimensions
- 254.4 × 124.4 × 11.7 mm
- Warranty
- 2 years
